PERIPHERALS
LARGE CHANNEL SYSTEM

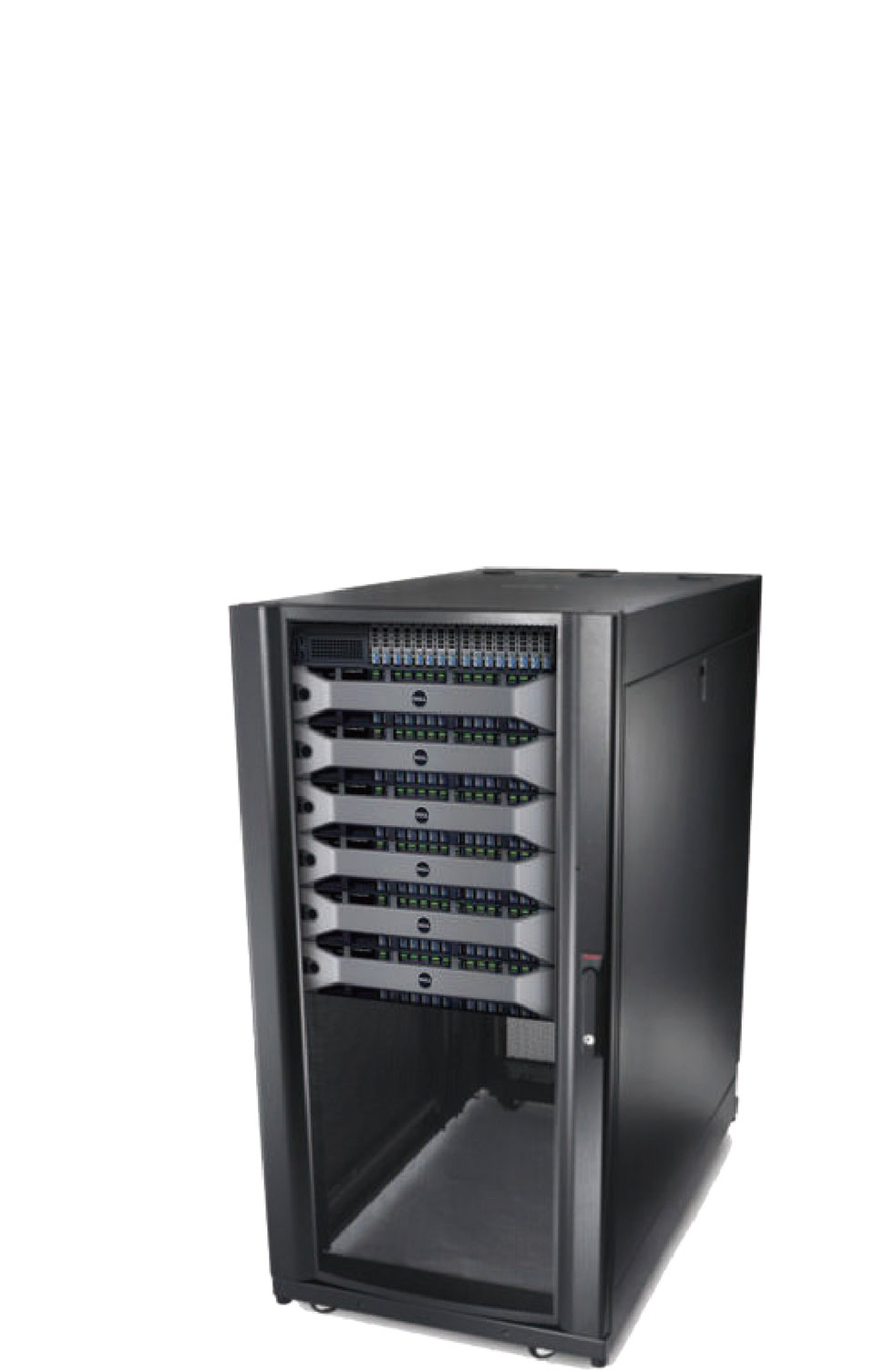

  • DMC&DCC
    The Data Manager Console (DMC) program is used to set up the project parameters, including the lGU-16 recording parameters, before deployment. The Data Collector Console (DCC) program provides the interface with the IGU-16 units, for programming and offload. After the data has been offloaded by DCC, DMC is used to generate the output files in SEGD or SEGY format.The DMC and DCC programs run on High-Speed servers that each have an external 120 TB RAID attached.
    Server:
    Dell R740
    CPU:
    Intel® Xeon® Silver 4214R 2.4G × 2
    Disk 1 and Disk 2:
    RAID1-2 TB per disk contains the Operating System
    Disk Array:
    Dell MD1400 (Raid 6,12*10TB) for Data Storage
    Input Voltage:
    100 - 240 V AC (50/60 Hz)
    DMC&DCC

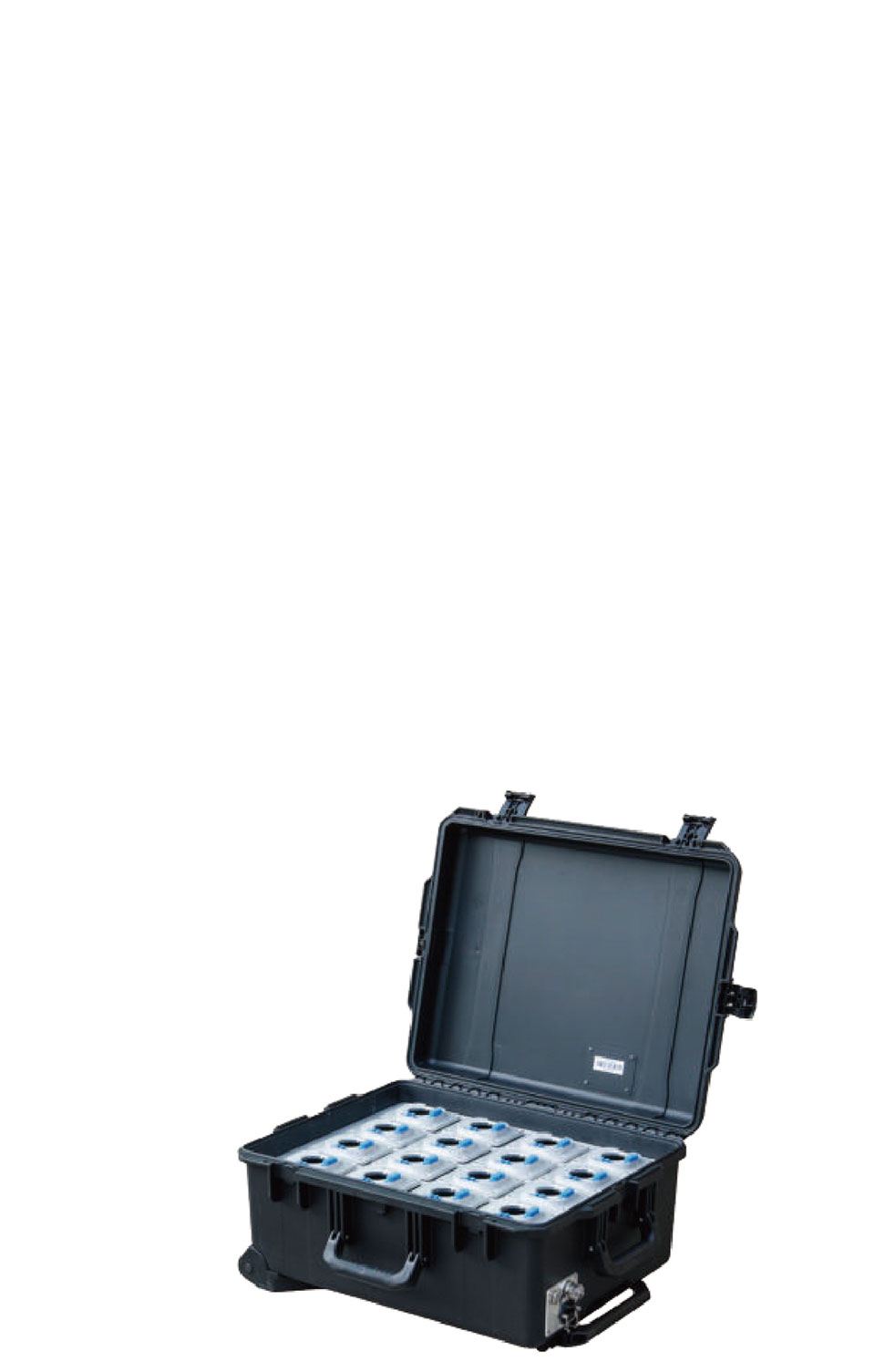

  • IGU Tester
    The IGU Tester is used to perform acceptance testing of IGU-16s (both the electronics and the geophone). It can test 16 units at once. The Tester application runs on an attached computer and provides a comprehensive range of user-selectable tests, the results of which are saved in a database.
    Size(L×W×D):
    24.6×19.7×11.7in/625×500×297mm
    Weight:
    83.7lb/ 38kg
    Input Voltage:
    100-240V AC (50/60 Hz)
    Rated Power:
    25W
    IGU Tester

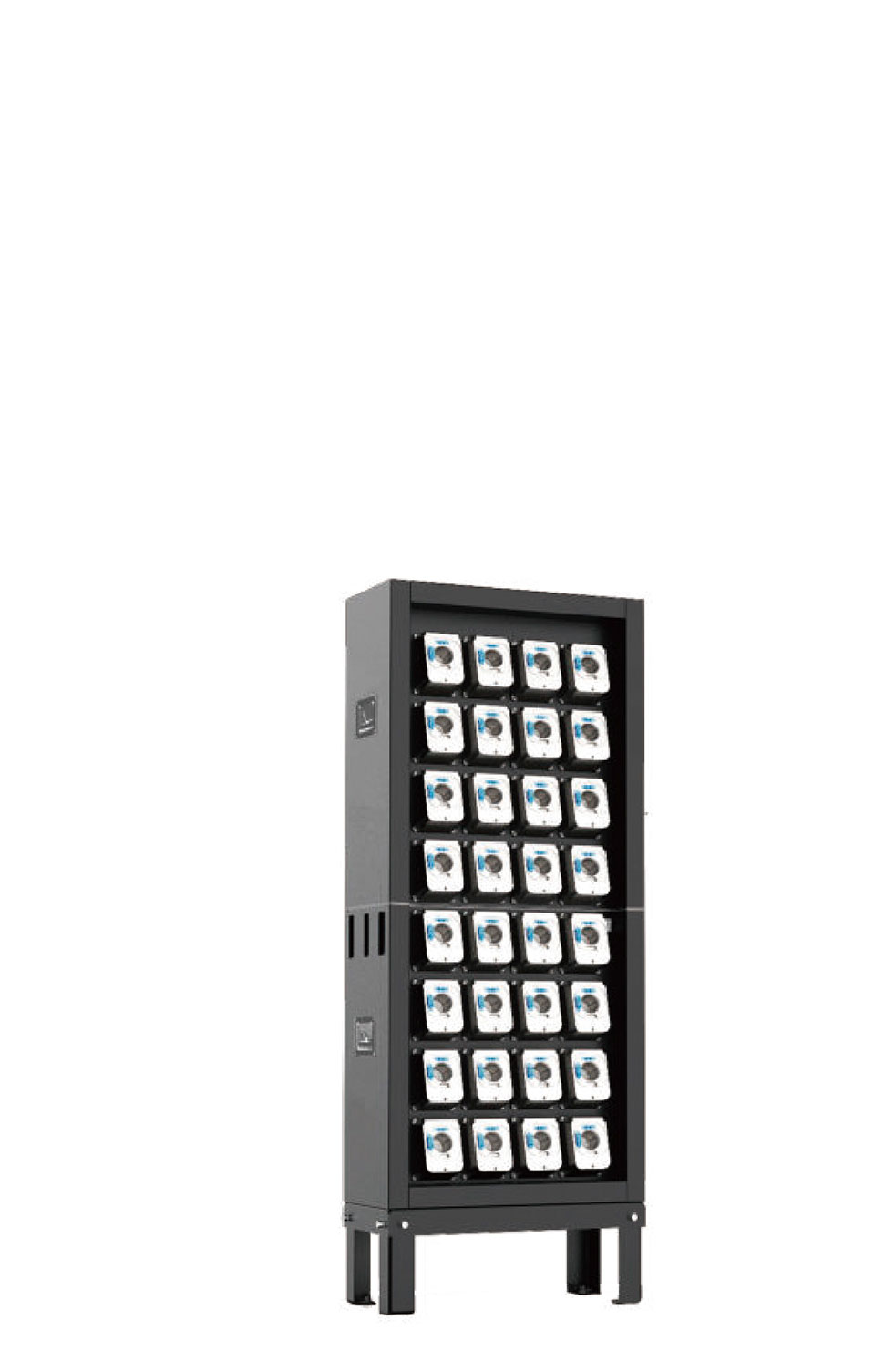

  • Data Harvesting Rack (DHR)
    The Data Harvesting Rack is used (in conjunction with the DCC Server) to program the lGU-16s. It is also used for offloading the seismic data including QC data. Each DHR has 32 slots. The average downloading speed of each slot is 20 MB/s. There is a monitor on each DHR to view the status of the connected IGU-16s.
    Size(L×W×D):
    65.3×25.6×11.8in / 1660×650×300mm
    Weight:
    198.4lb /90kg
    Slots No.:
    32
    Download Speed:
    20MB/sec for each slot
    Offloading Time:
    3000CHs @20 days@ 2ms in < 3 25 hours
    Input Voltage:
    100-240V AC, 50/60Hz
    Rated Power:
    200W
    Data Harvesting Rack (DHR)

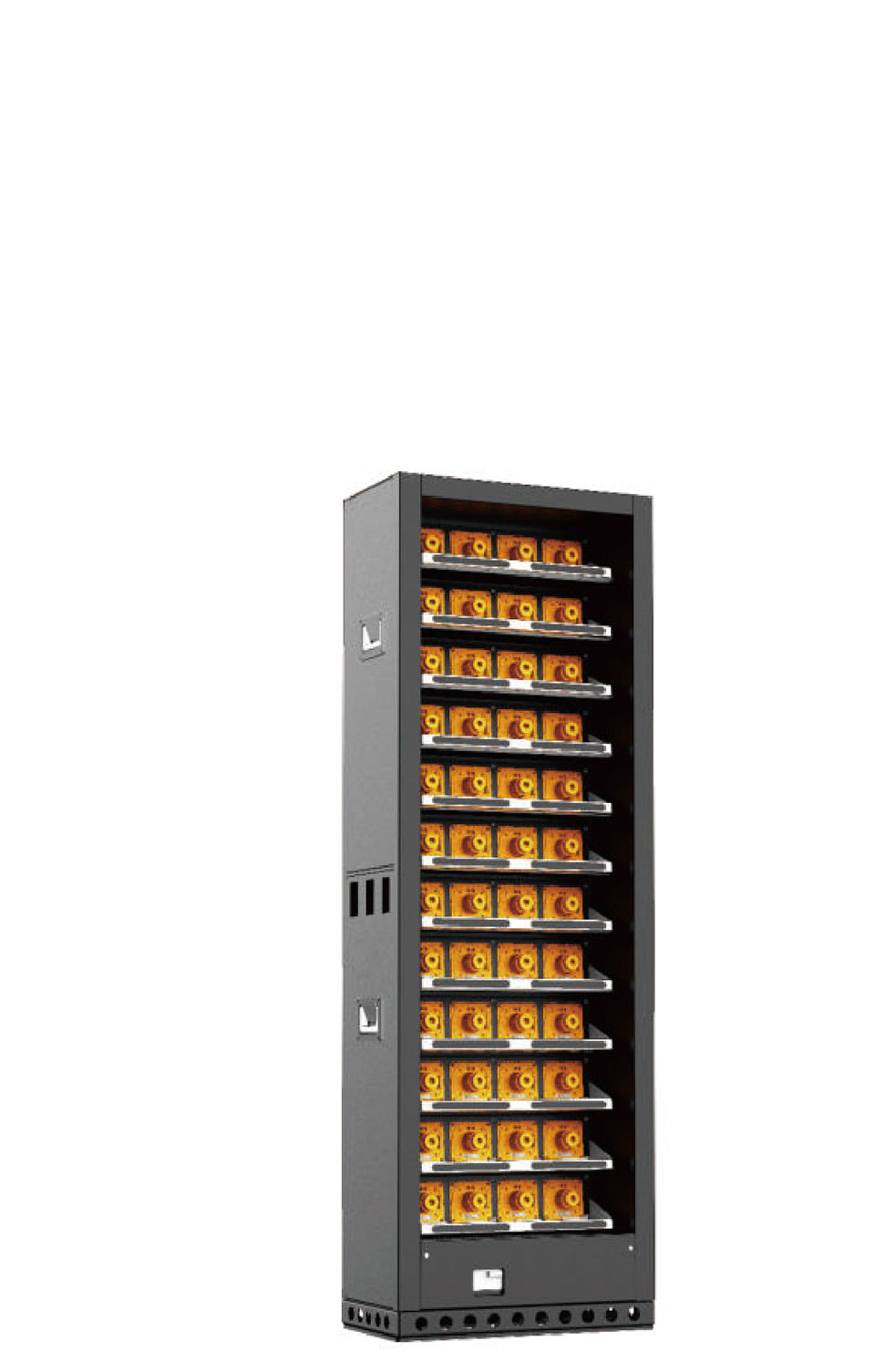

  • Battery Charging Rack (BCR)
    The BCR is for charging the IGU-16 batteries. There are 48 slots on each BCR, each with an LED indicator to show that slot' s charging status.
    Size(L×W×D):
    72×23.6×12.6in /1827×600×320mm
    Weight:
    286.6lb/ 130kg
    Layout:
    12 rows, 4 chargers on each row
    Maximum Current:
    2A per slot
    Input Voltage:
    100-240 V,50/60 Hz
    Rated Power:
    1920W
    Charging Mode:
    Fast charge <90%, trickle charge >90%
    Charging Time:
    <3.25 hours from fully discharged (IGU-16 Battery)
    Charging Temperature:
    +3℃~+45℃
    Battery Charging Rack (BCR)

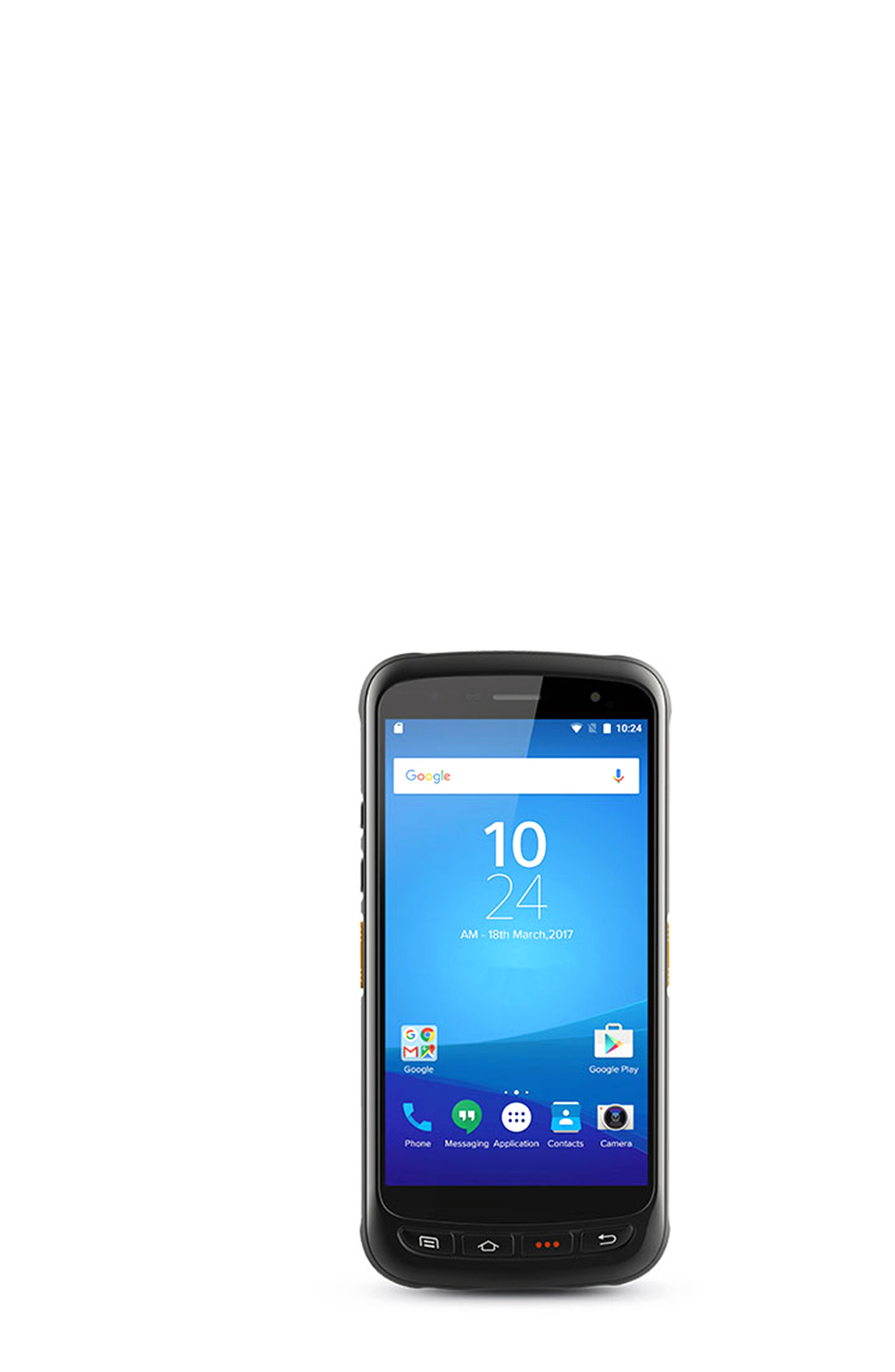

  • Field Deployment Tool
    The Field Deployment Tool is handheld RFID scanning equipment which runs SmartSolo APP for scanning IGU-16 after deployment to match survey line and station number.
    Size(L×W×D):
    164.2x78.8x17.0 mm
    Weight:
    <288 g
    Protect Level.:
    IP67
    Field Deployment Tool

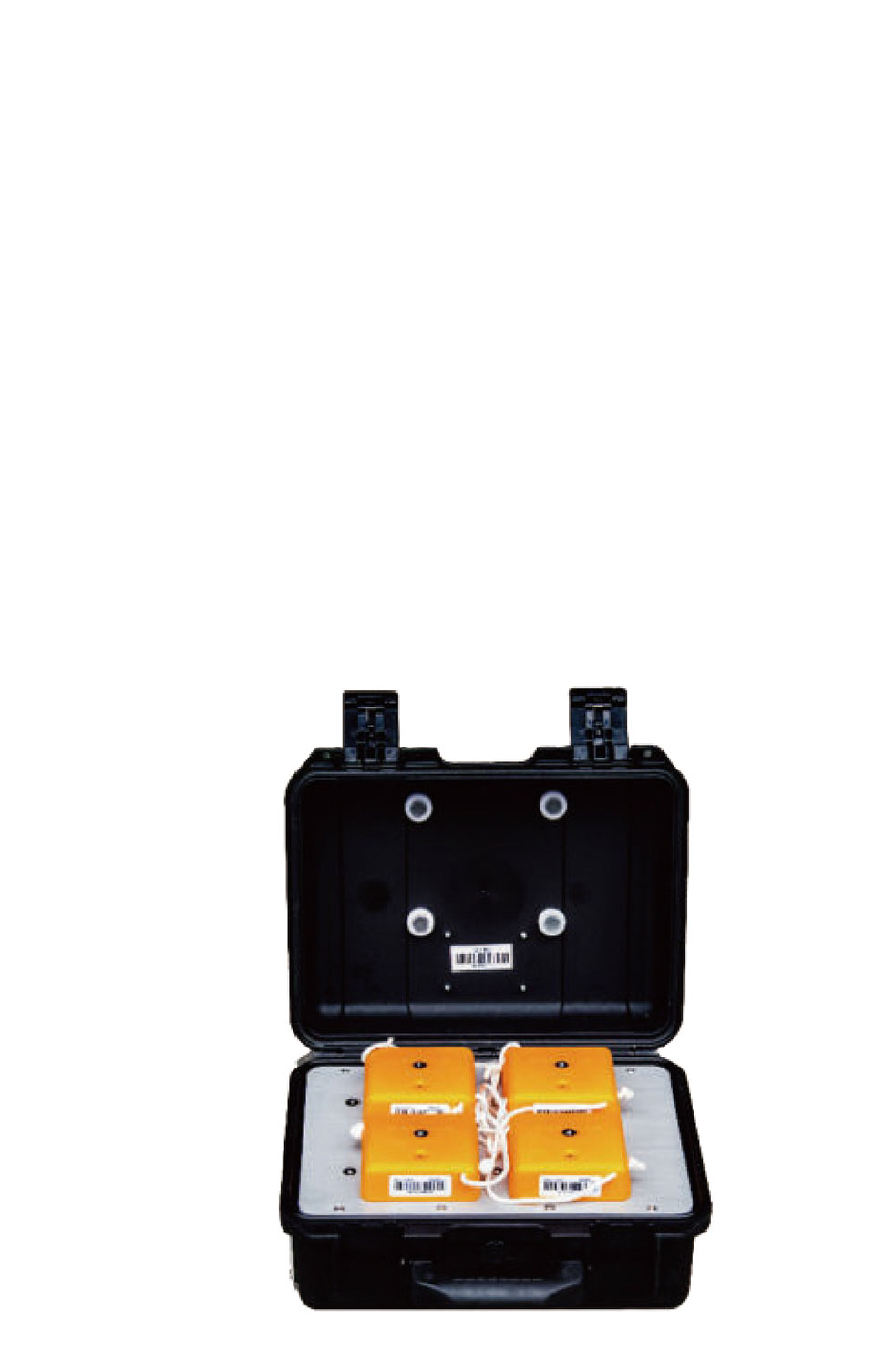

  • Auxiliary Box
    The AUX Box contains 4IGU-16-AUX units. It can thus record up to four auxiliary signals with microsecond accuracy using its external GPS antenna. The Aux signals (e.g. TBs, sweep signal) are then offloaded by plugging eachIGU-16-AUXinto the DHR.
    Size(L×W×D):
    14.2×11.4×6.5in / 361×289×165mm
    Weight:
    14.3lb / 6.5kg
    Slot No:
    4
    Input Voltage:
    12V DC
    Auxiliary Box

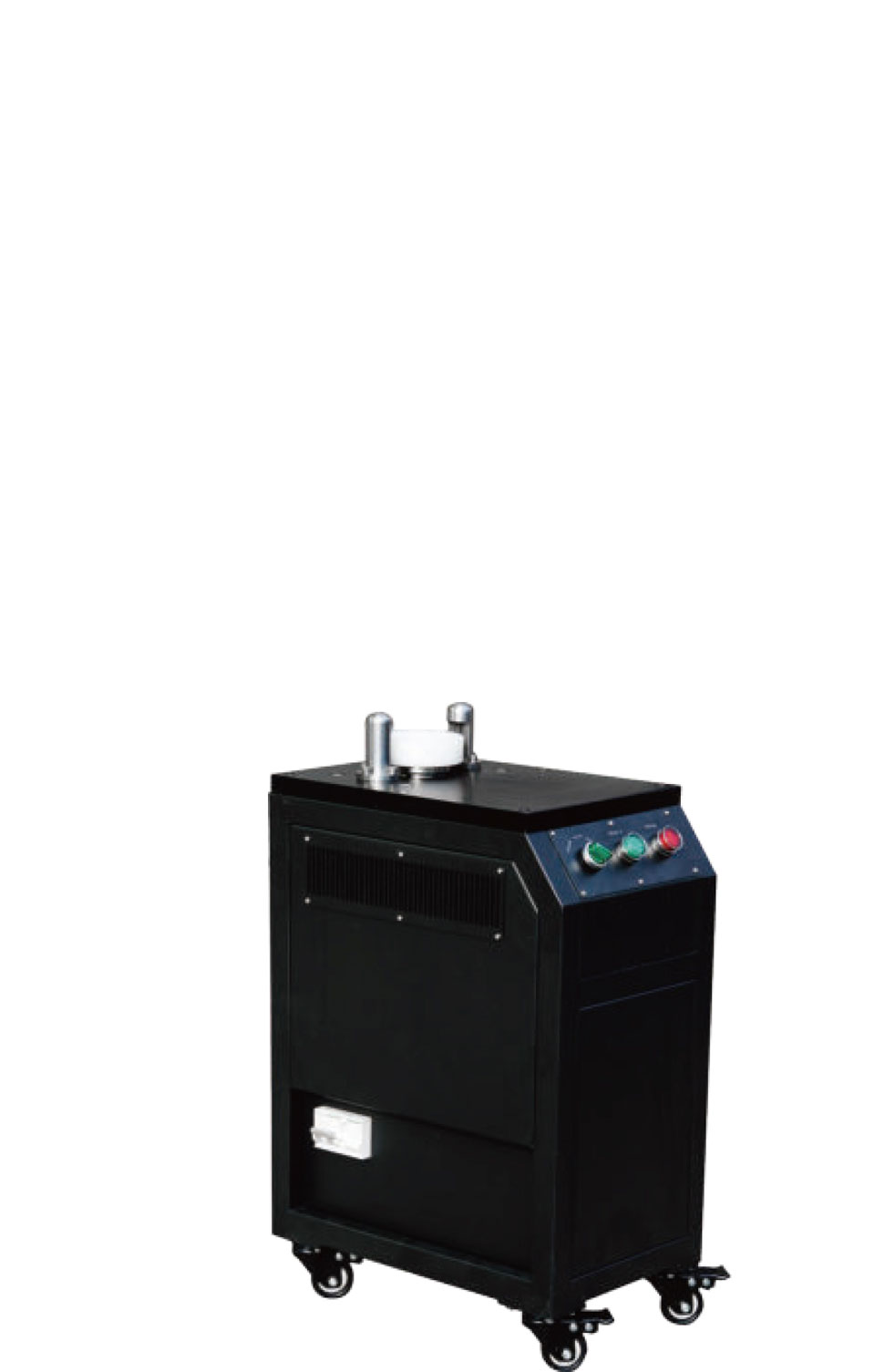

  • Automatic Assembly/Disassembly Machine (ADM)
    The Automatic Assembly/Disassembly Machine (ADM) is used to assemble and disassemble IGUs for off loading, battery charging and redeployment.
    Size(L×W×D):
    26.2x10.4x16.1in / 665x265x410mm
    Weight:
    76.1lb / 34.5kg
    Input Voltag:
    100-240V AC 50/60 Hz
    Rated Power:
    800W
    Assemble/ Disassemble Speed:
    Assemble/Disassemble 720 IGUs per hour
    Automatic Assembly/Disassembly Machine (ADM)
MINI-PERIPHERALS

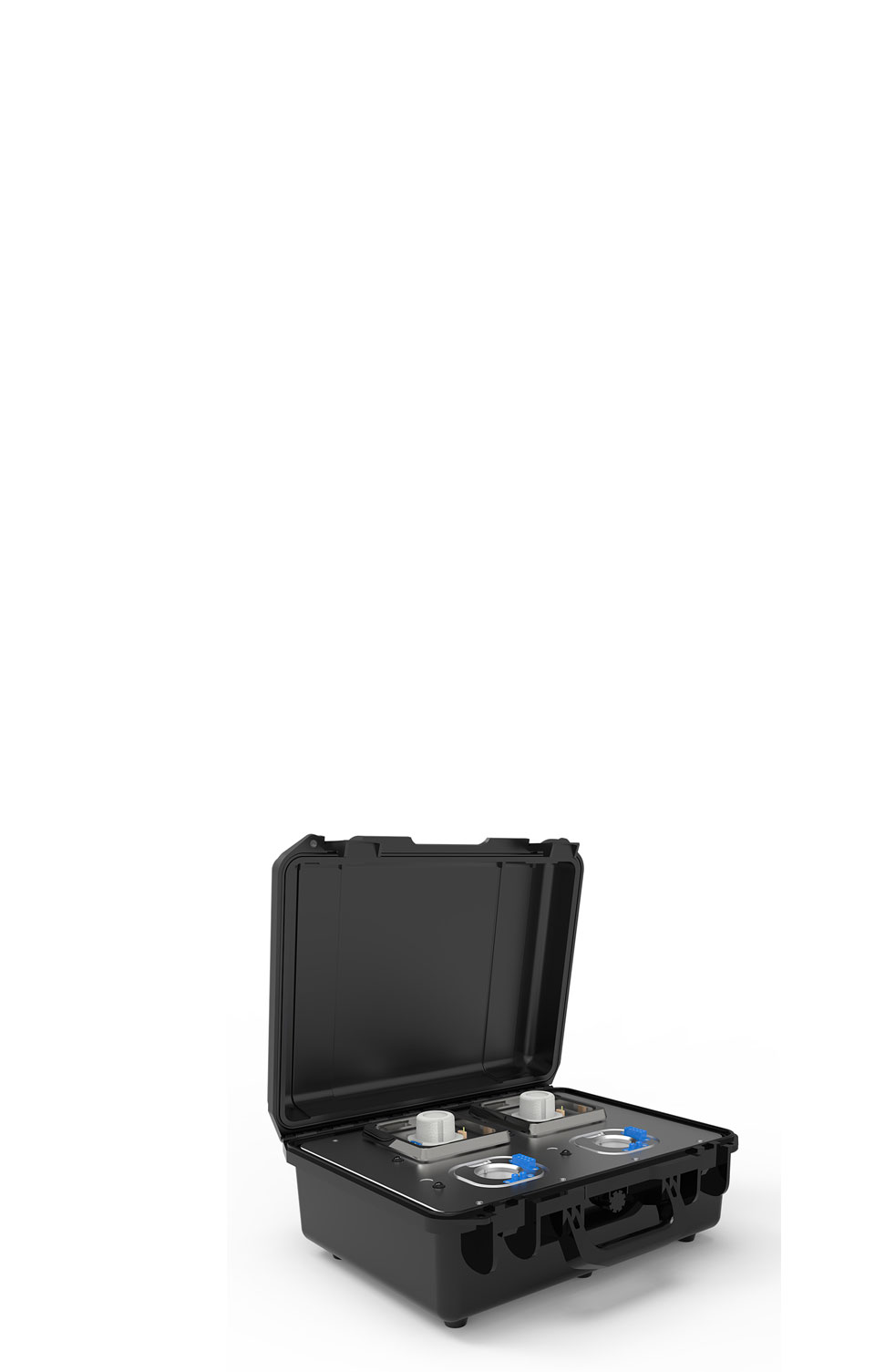

  • 4 Slots All-In-One
    4 Slots All-In-One is a small integrated system which combines 2charging ports, 1 data harvesting port and 1 testing port. It is designed for the small channel system, so crews can complete the whole project with only one box.
    Size(L×W×D):
    16.2×12.7×6.6in / 411×322×168mm
    Weight:
    16.8lb / 7.6kg
    Slot No.:
    1 × Harvesting port; 1 × Testing port; 2 × Charging port
    Charging Time:
    <3.25hours from fully discharged (IGU-16 Battery)
    Download Speed:
    20MB/sec for each slot
    4 Slots All-In-One

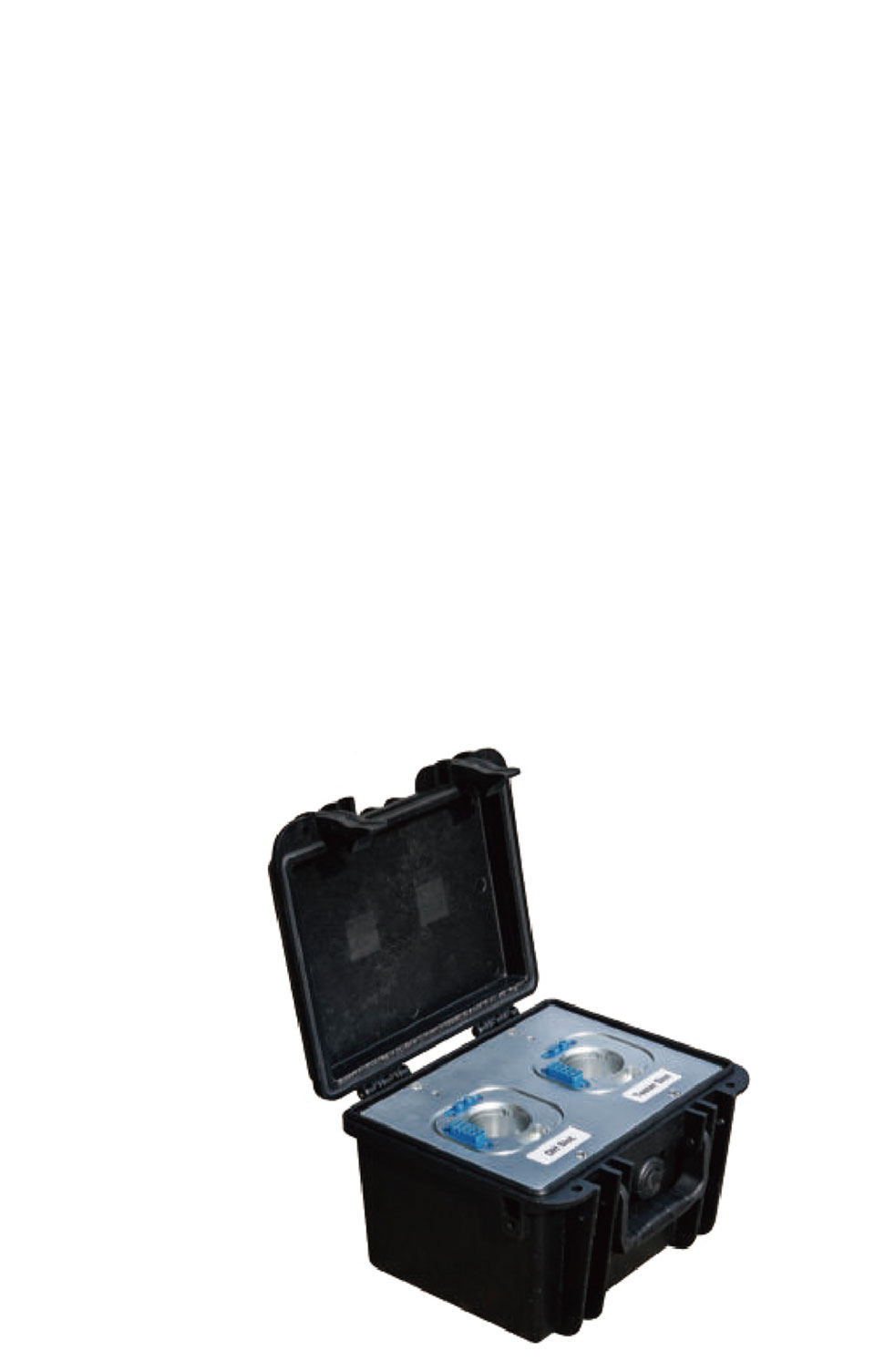

  • 2 Slots All-In-One
    Size(L×W×D):
    9.8×8.6×6.5in / 250×218×165mm
    Weight:
    5.1lb / 2.3kg
    Slot No.:
    20MB/sec for each slot
    Maximum Current:
    2A per slot
    Charging Humidity:
    20% ~ 90% RH, No condensing
    Input Voltage:
    5V, 1A
    Harvesting Led Flashing Code:
    Fast flash red light: Connecting or Reading/Writing data
    Steady red light: IGU-16 body connected with DHR and no operating
    Tester LED Flashing Code:
    Steady green light: IGU-16 body/IGU-16 AUX connected with SoloTester
    2 Slots All-In-One
SMALL CHANNEL SYSTEM

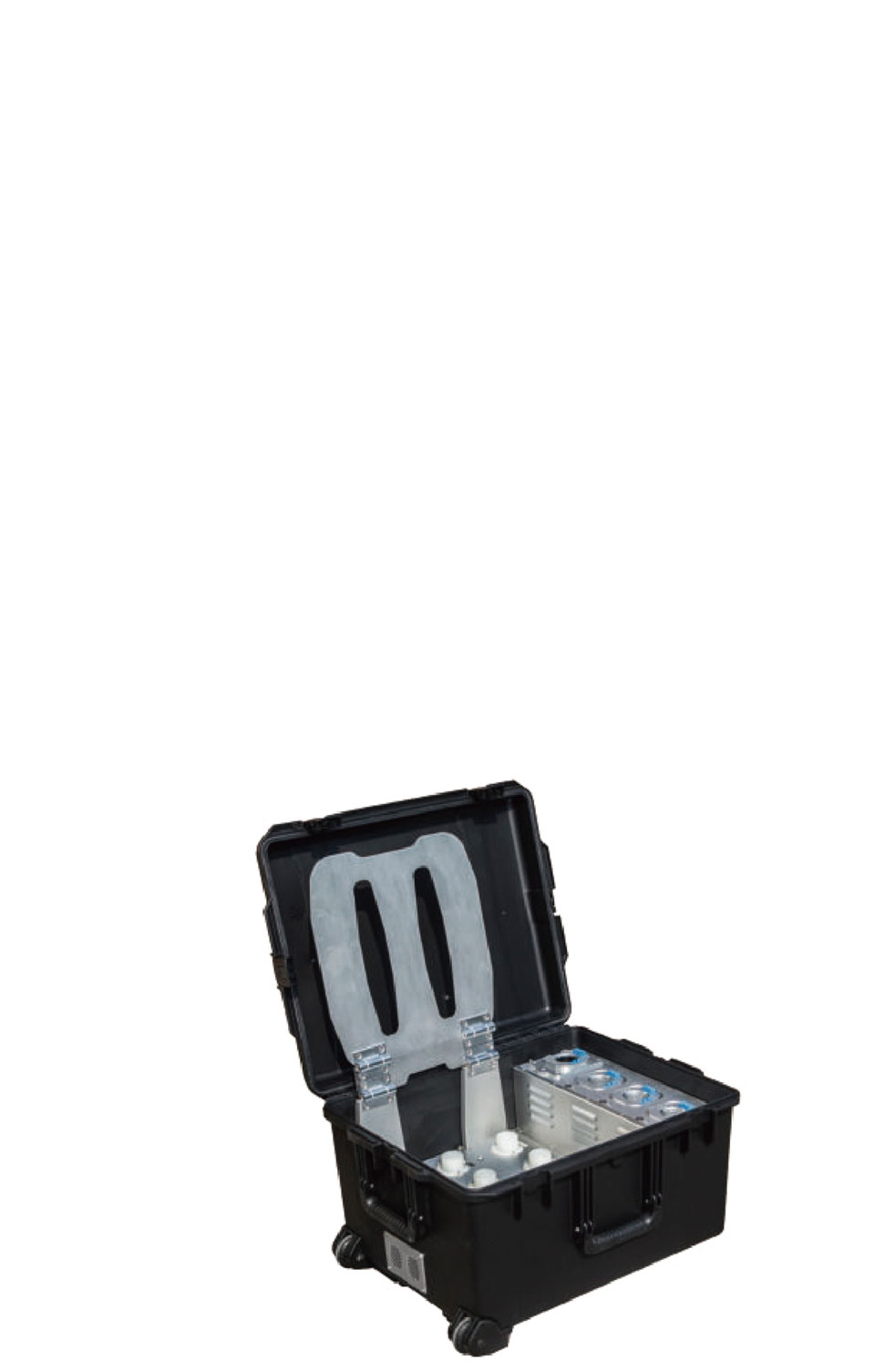

  • 16 Slots All-In-One
    16 Slots All-In-One is a small integrated system which combines charging ports, data harvesting ports and testing ports. It is designed for the small channel system, so crews can complete the whole project with only one box.
    Size(L×W×D):
    24.6 ×19.7 ×14.4in / 625×500×366mm
    Weight:
    46.3lb / 21kg
    Slots No.:
    3 × Harvesting port; 1×Testing port;12× Charging port
    Maximum Current:
    2A per slot
    Input Voltage:
    100-240V AC, 50/60Hz
    Download Speed:
    20MB/sec for each slot
    Charging Time:
    <3.25 hours from fully discharged (IGU-16 Battery)
    Rated Power:
    640W
    16 Slots All-In-One

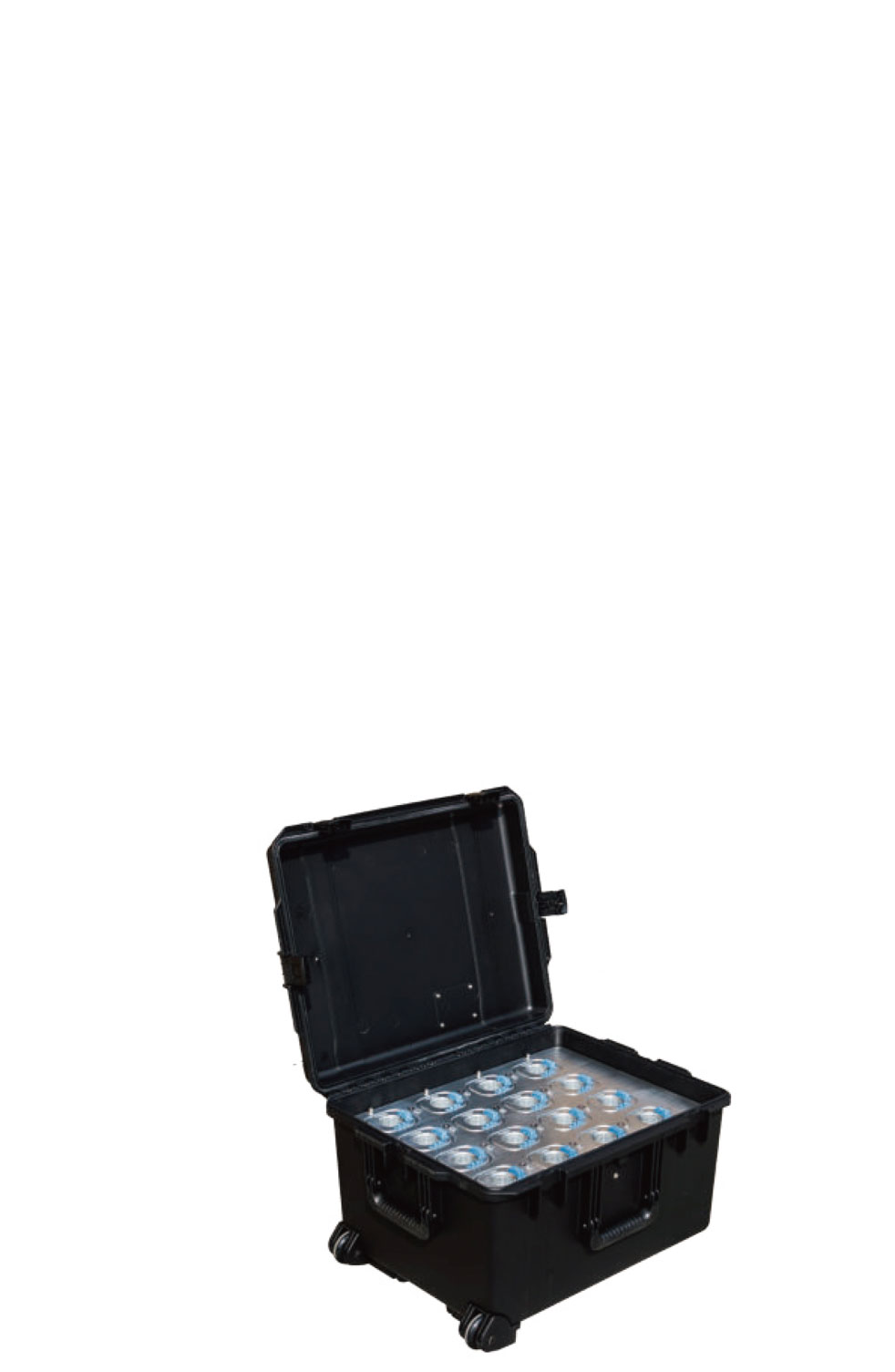

  • Portable Data Harvester (PDH)
    The Portable Data Harvester (PDH) is a portable option for programming and offloading IGU-16s. Each PDH has 16 slots. The average downloading speed of each slot is around 20 MB/s.
    Size(L×W×D):
    24.6×19.7×14.4in / 625×500×366mm
    Weight:
    47.4lb / 21.5kg
    Slot No.:
    16
    Download Speed:
    20MB/sec for each slot
    Input Voltage:
    100-240V AC, 50/60Hz
    Rated Power:
    100 W
    Portable Data Harvester (PDH)

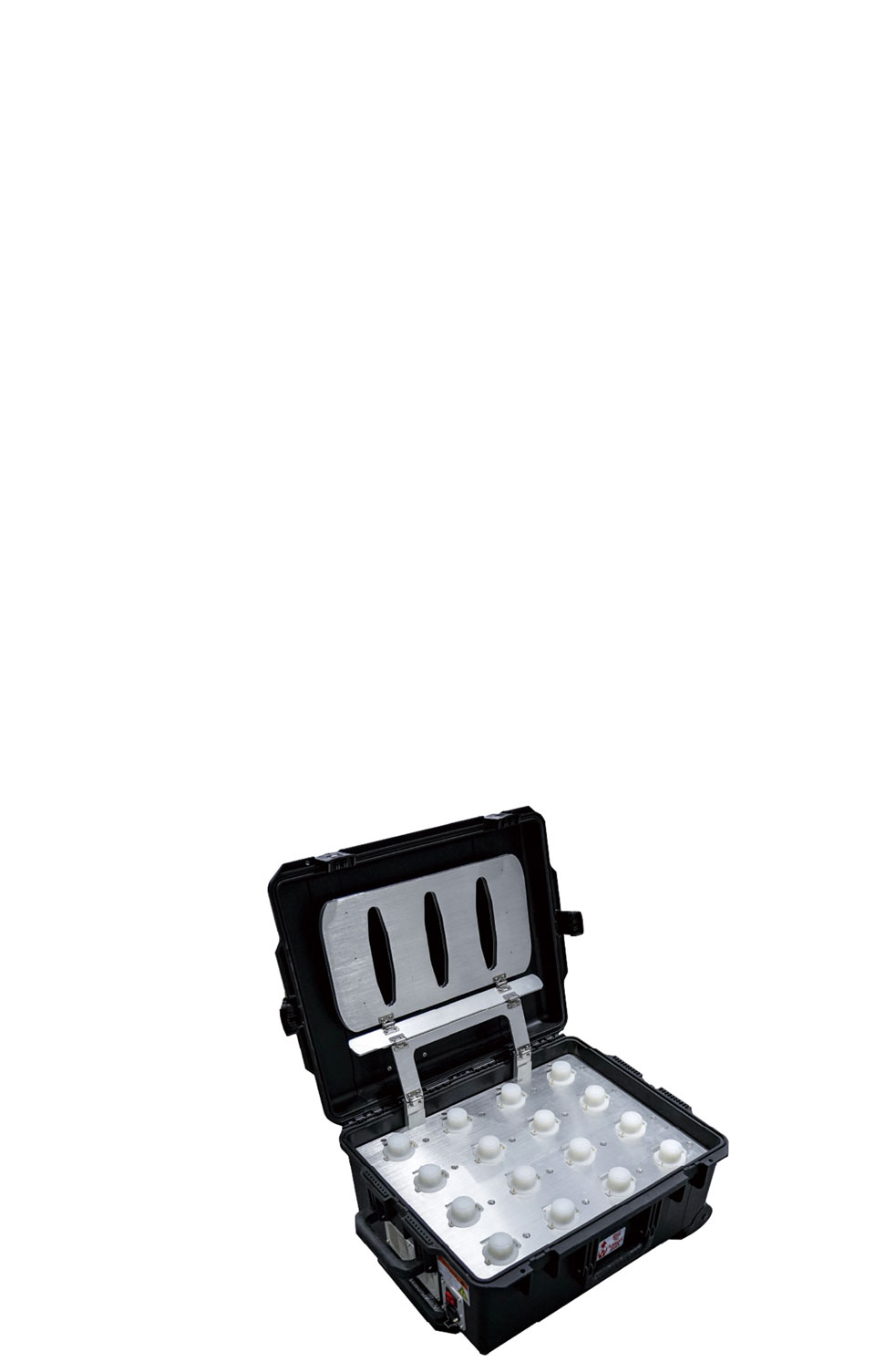

  • Portable Battery Charger (PBC)
    The Portable Battery Charger (PBC) is used for charging the IGU-16 batteries. Each battery charger rack can charge 16 batteries. The LED indicators show the charging status of each battery.
    Size(L×W×D):
    24.6 ×19.7 ×14.4in / 625×500×366mm
    Weight:
    58lb / 26.3kg
    Slots No.:
    16
    Input Voltage:
    100-240V AC, 50/60Hz
    Rated Power:
    640W
    Maximum current:
    2A per slot
    Charging time:
    <3.25 hours from fully discharged (IGU-16, IGU-16HR, IGU-16HR-IES Battery) <6 hours from fully discharged (IGU-16HR 3C Battery)
    Portable Battery Charger (PBC)
